Hi-Roller Tripod

Name: Hi-Roller Tripod | U-TECK
SKU: 59410

Click HERE to view the data sheet.

Features: Adjustable height from 4 to 7 feet. Each leg is adjustable for uneven terrain. Stakes and leg attachments are included to help stabilize the tripod. Very lightweight at 7.5 lbs. each Saves time and personnel when setting up a long pull. Set-up is Fast and Easy Simply position the tripod over the handhole.…

VPN: 59410

Category: Hi-Roller Placement Wheels, Cable Pulling and Placement

Description
Additional information

Features:

Adjustable height from 4 to 7 feet.
Each leg is adjustable for uneven terrain.
Stakes and leg attachments are included to help stabilize the tripod.
Very lightweight at 7.5 lbs. each

Saves time and personnel when setting up a long pull.

Set-up is Fast and Easy

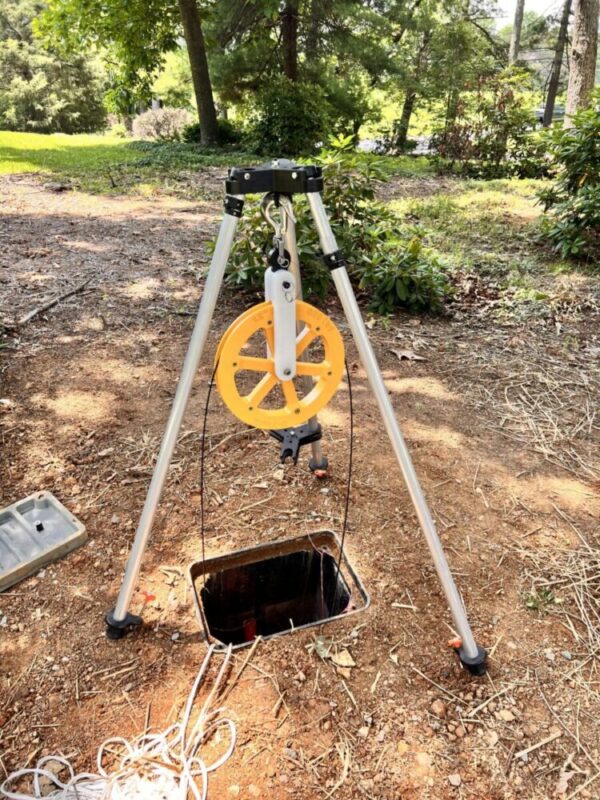

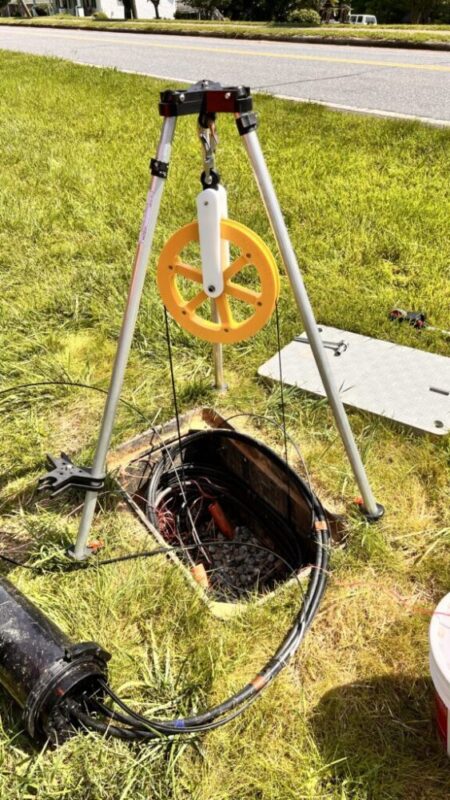

Simply position the tripod over the handhole.

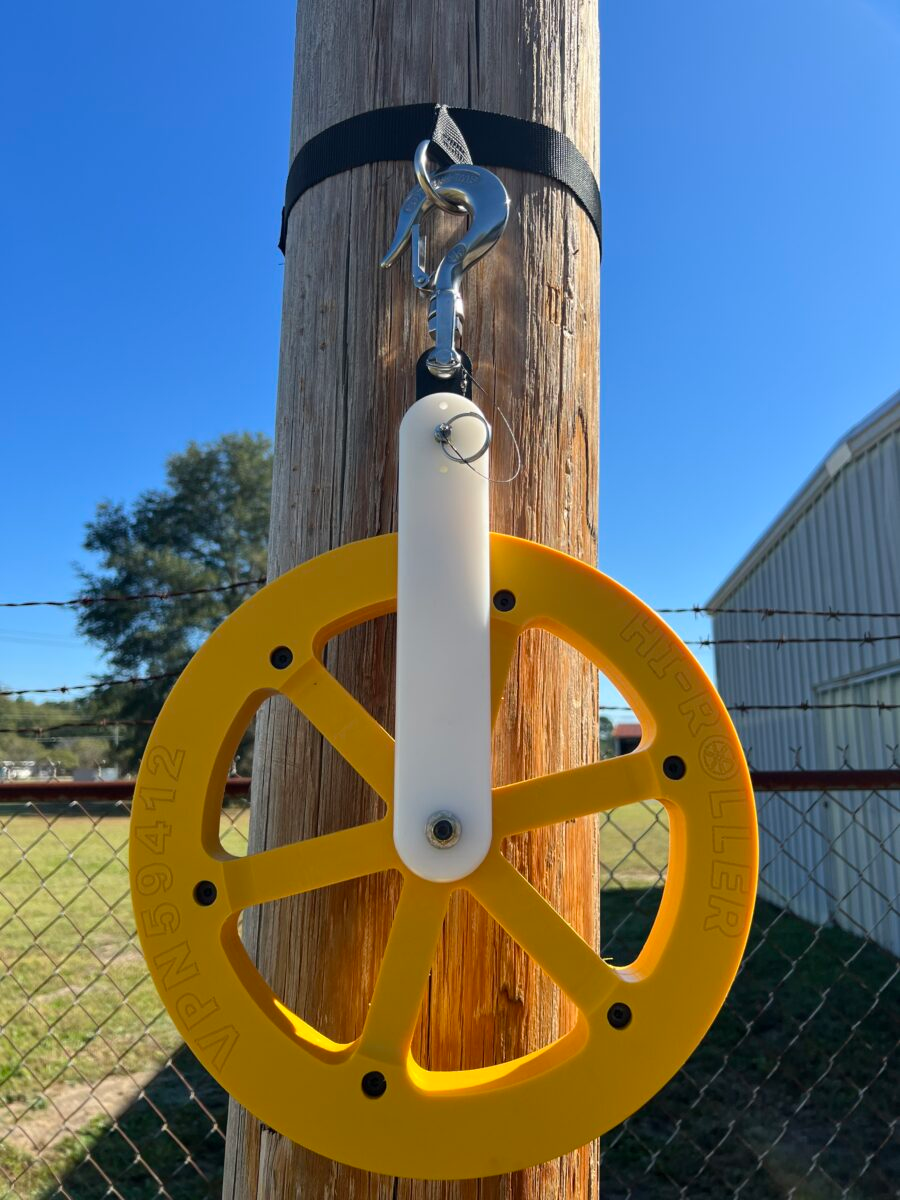

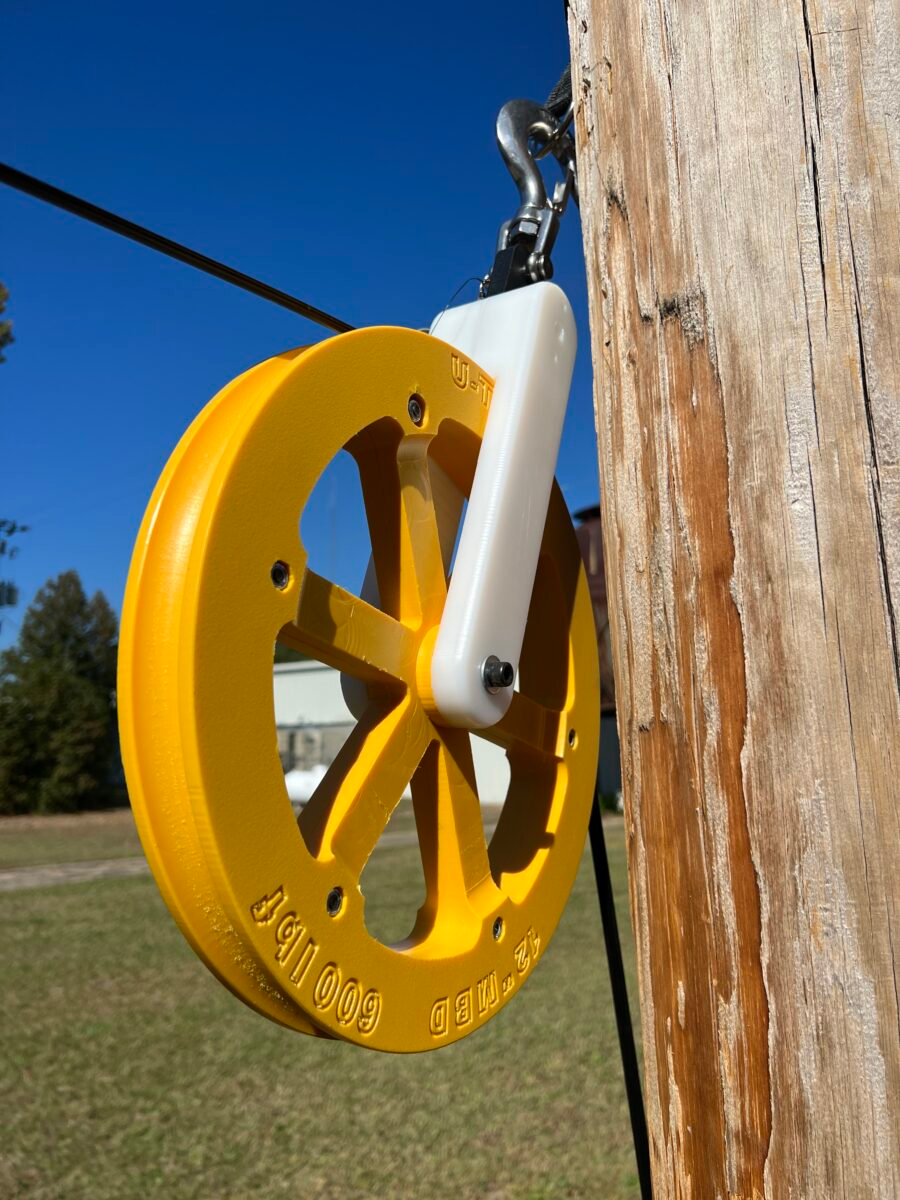

Attach the Hi-Roller Placement Wheel to the eye bolt under the top plate.
Attach cable to the Hi-Roller Placement Wheel and pull easily from Handhole to Handhole.
Set up additional Tripods as needed.

U-TECK’s Hi-Roller Tripod’s can play a crucial role in ensuring the safe underground placement of fiber cables in long handhole runs.

This innovative tool eliminates concerns about damaging the fiber due to over-bending, preventing fiber breakage that can occur when entrance and exit ducts don’t align correctly or when fibers are placed at challenging angles.

Set up additional tripods for sequential handhole-to-handhole installations.
