Fiber Optic Splicing Workstation and Accessories

Click HERE to view the data sheet.

Fiber Optic Splicing Workstation has a larger work surface but offers the ability to fit in most work sites. It can be used as a freestanding workbench or in narrow manhole environments, inside tents, central office work, and light enough for aerial work in a bucket or attached directly to the cable support strand by…

FEATURES:

  • Portable workbench
  • Large work surface
  • Compact fold-up
  • Built in slots & holes for tools
  • Heavy duty steel legs
  • Cable management attachment included
  • Quick-attach standoffs for hanging

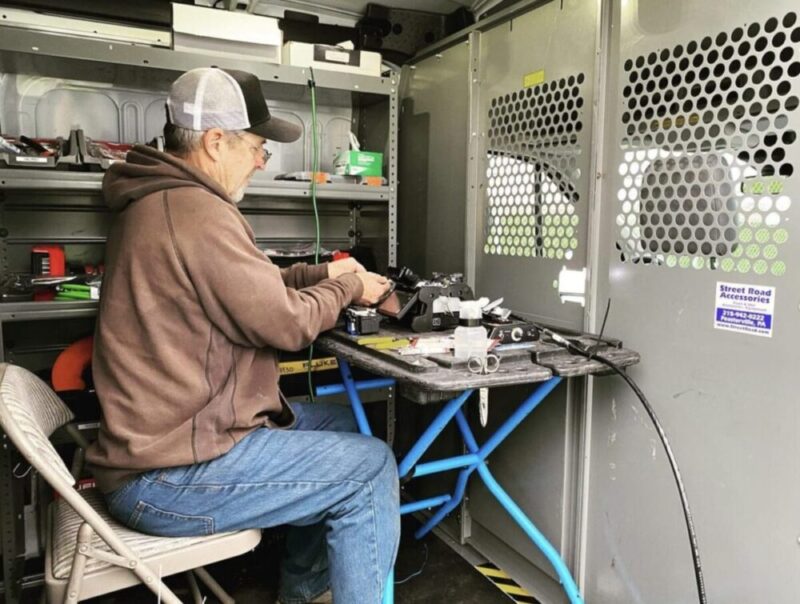

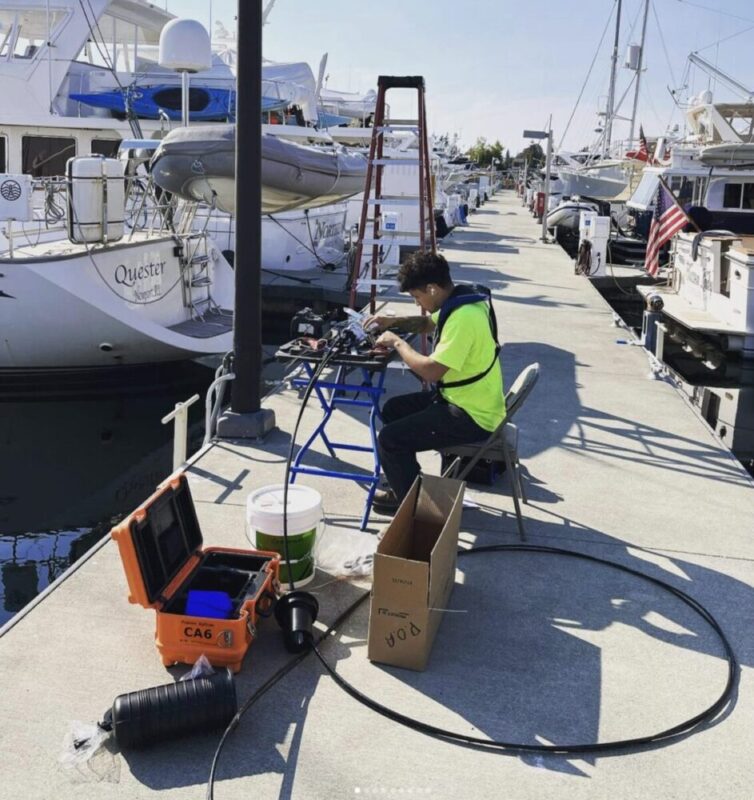

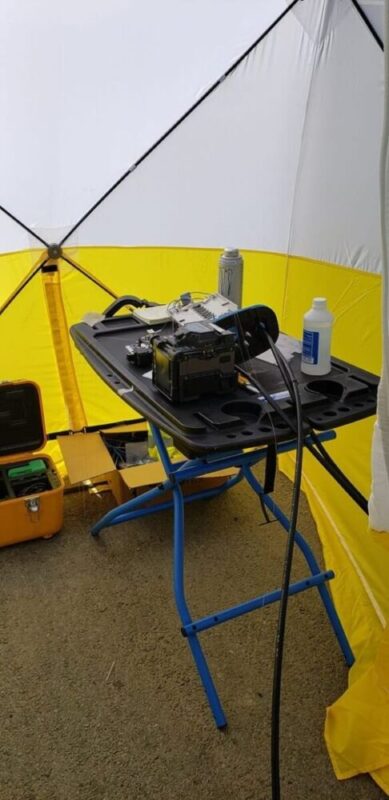

U-TECK is proud to offer the next generation fiber splicing workstation to support fiber splicing at the splice or optical network terminal (ONT).  The NEW! Fiber Optic Splicing Workstation has a larger work surface, but offers the ability to fit in most work sites. It can be used as a freestanding workbench or in narrow manhole environments, inside tents, central office work, and light enough for aerial work in a bucket or attached directly to the cable support strand by removing the work surface from the stand.

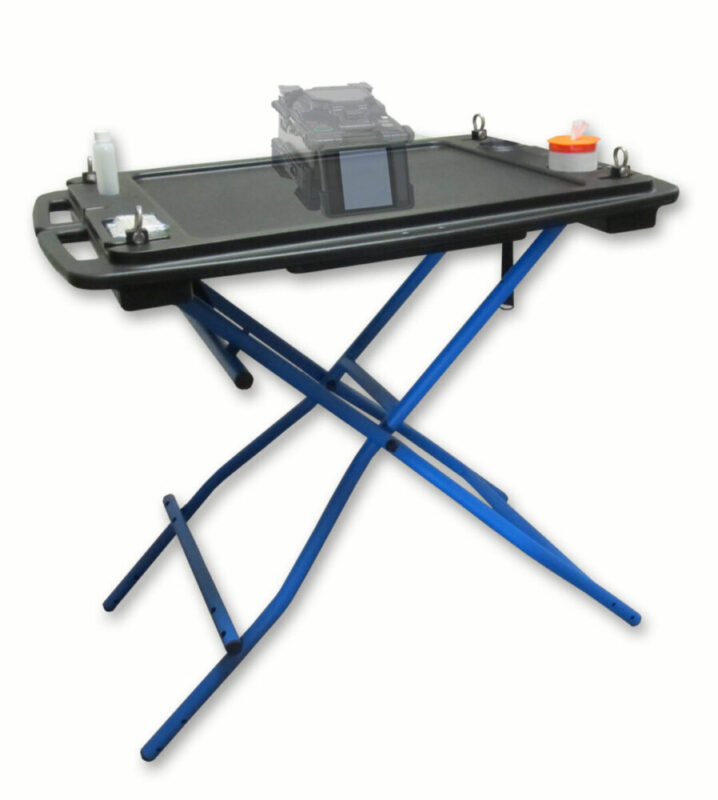

The heavy duty, steel legs lock firmly to the work surface and stands at a generous 31-1/2 inches tall, keeping your table at a comfortable working level.  Our unique Cable Management Bracket fits securely on either side of the workbench, allowing jacketed strands to stay put and separated until you need them.

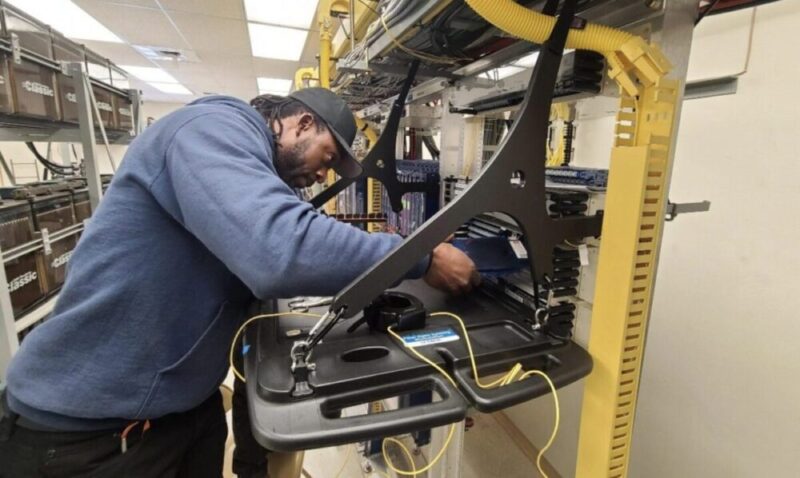

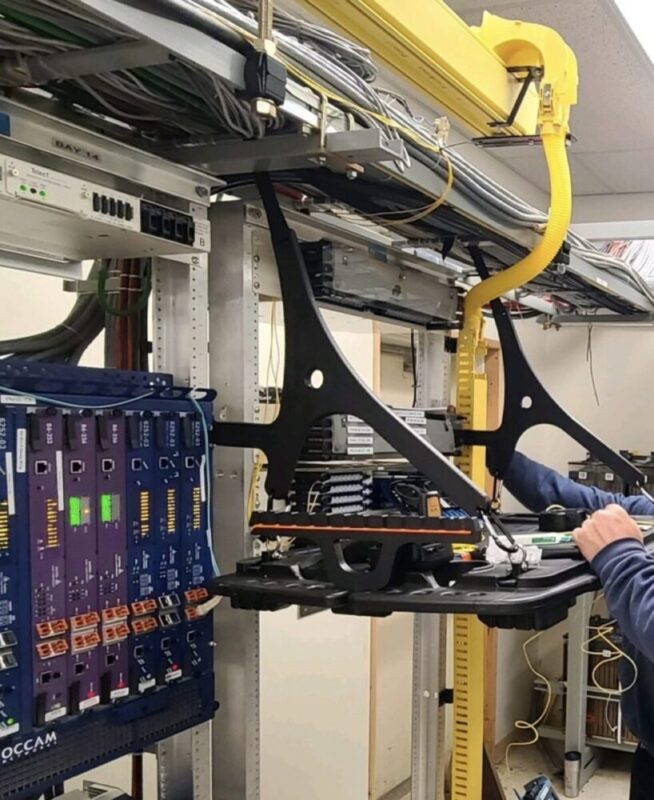

Separate the work surface from the stand and quickly attach the two unique stand-off props with adjustable webbing into the 4 accessory slots and you can take your work table to new heights, giving you a secure and level work surface when hanging it over terminal casings inside data rooms, closets, and outdoors against a wall for wall-mounted ONT’s or NID’s.

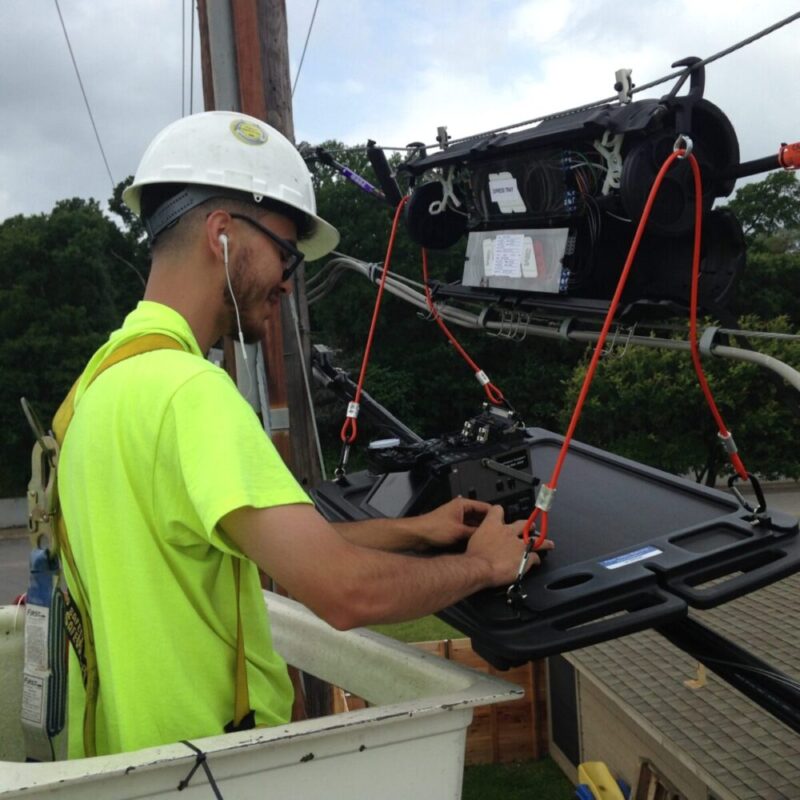

Attach the Aerial Strand Cables into the 4 accessory slots and your table is right where you need it for work at the cable support strand while working from an aerial bucket truck.

The Workstation surface area is approximately 35-1/2” x 22-1/2”, with an inside recessed area of 22” x 18” and a weight capacity of 100 lbs. Slots and holes are molded into the table to conveniently hold tools, parts, splicing sleeves and other splicing equipment. This recessed area prevents small pieces from rolling off. The table folds up neatly for quick and easy transport and storage.

If you use the Workstation with the table top, floor stand and cable management bracket, it will weigh in at 17.63 lbs.

Hanging the Workstation using just table top, stand-offs, and the cable management bracket, the total weight is a mere 10.27 lbs!

The Fiber Splice Case Stand is a portable support stand designed to hold fiber closures when performing splicing duties. It works great in conjunction with our Fiber Optic Splicing Workstation!

No matter where your fiber splicing duties take you, you’ll want to have this lightweight Workstation available at all times. Durable, portable and stable, this will become a standard in your splicing environment.





Ordering Information:

Product Description VPN
Workstation – Standard Workstation with floor stand and cable management bracket 55706
Workstation – Stand-Offs Workstation with floor stand, cable management bracket, and stand-offs 55701
Workstation – Non-Aerial Kit 1 Fiber Optic Splicing Workstation, includes floor stand with adjustable height and captive knob for use with 1/4-20 THREAD SPLICING MACHINE 55700
Workstation – Non-Aerial Kit 2 Fiber Optic Splicing Workstation, includes floor stand with adjustable height and captive knob for use with M6 THREAD SPLICING MACHINE 55700-B
Full Fiber Optic Splicing Workstation Kit Fiber Optic Splicing Workstation: Table, Floor Stand with adjustable height assembly, complete with: Cable Management Bracket, Stand-Offs, Captive Knob for 1/4-29 Thread Splicing Machines, Aerial Strand Cables, Tablet/Test Holder, Splice Tray Holder, Wheel Kit and Tether for Splicer Seat. 55700-1

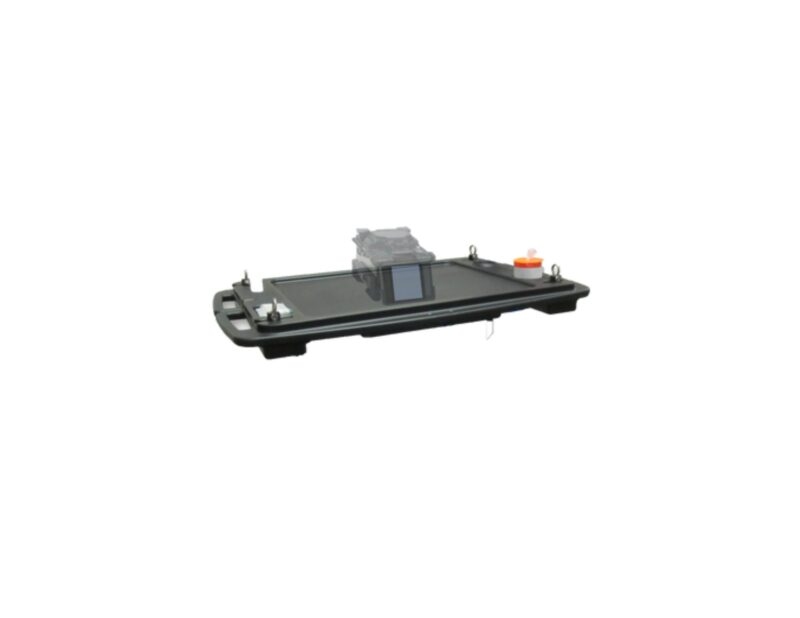

Workstation – Aerial Fiber Optic Splicing Workstation (Table Top only – no stand) with adjustable height and captive knob for use with 1/4-20 Thread Splicing Machine and Aerial Strand Clamps 55700-3
Cable Management Bracket Used to secure cables while working at table. Base slides into tray. 55730
Floor Stand Only UTECK Fiber Optic Splicing Workstation floor stand only with adjustable height (locks in at 32 and 41 tall) 55705-Stand
LED Dual Power Light W/ Magnifying Glass

This light attaches to the Fiber Optic Workstation. The best feature is the 10″ wire that can be bent in any direction and stays where it’s pointed.

55730
Splice Tray Holder The Splice Tray Holder is used to secure splice tray while working on at workstation. Base slides into table 55725
Stand-Offs UTECK’S stand-offs only for Workstation. They are used to hang the table from a terminal or other item on a wall. Self-leveling. 55711
Aerial Strand Cables Used to secure and support workstation up in the air to a cable or strand. Clips onto the strand and mounts slide into the table. 55715
Fiber Splice Tablet Holder

The Fiber Splice Tablet Holder is an attachable support stand for your tablet. Strong and lightweight, it keeps your tablet steady and accessible.

55720
Fiber Splice Case Stand The Fiber Splice Stand is a portable support stand designed to hold fiber closures when performing splicing duties with the Fiber Optic Splicing Workstation. It is strong, lightweight and able to fit your real-world splicing environments. 55712
Fiber Grip Splicing Clamp The FIBER-GRIP will securely hold and manage loose fiber, ribbon, tubes, or cables up to .5” diameter while you are splicing. 55755

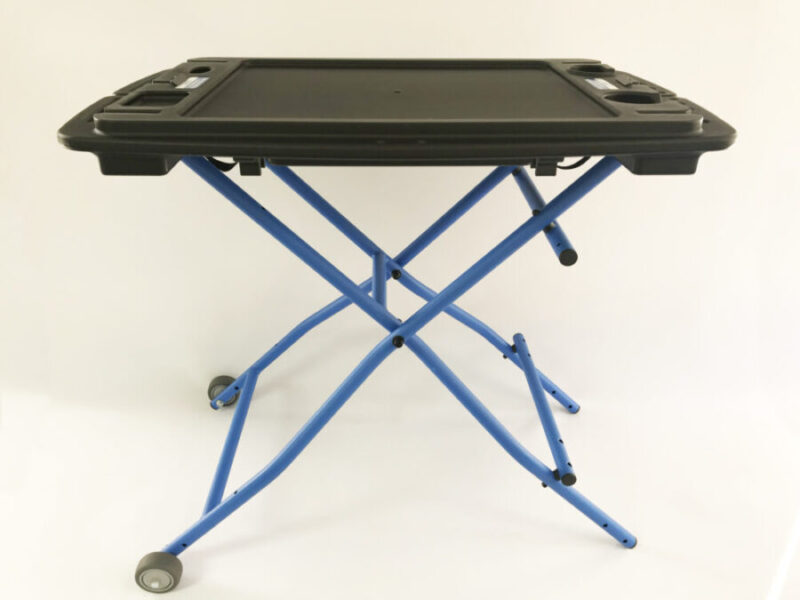

Wheel Kit This Wheel Kit attaches to your Fiber Optic Workstation and allows you to Mobilize with ease 55740
Tether This Tether allows you to store your splicer seat to your Fiber Workstation for easy storage and mobility. 55745
